Nakamichi Dragon Cassette Deck – Voltage Selectable International Version
The Nakamichi Dragon is one of the most iconic and technically accomplished cassette decks ever produced, and remains a highly sought-after component among serious collectors and analogue enthusiasts.
This example is presented in excellent overall preowned condition, with only minor cosmetic blemishes as highlighted in the photographs. It has been tested and is fully operational.
Particularly Desirable Voltage-Selectable Version
This Dragon is the voltage-selectable international version, making it particularly attractive to collectors and customers purchasing from outside its original market.

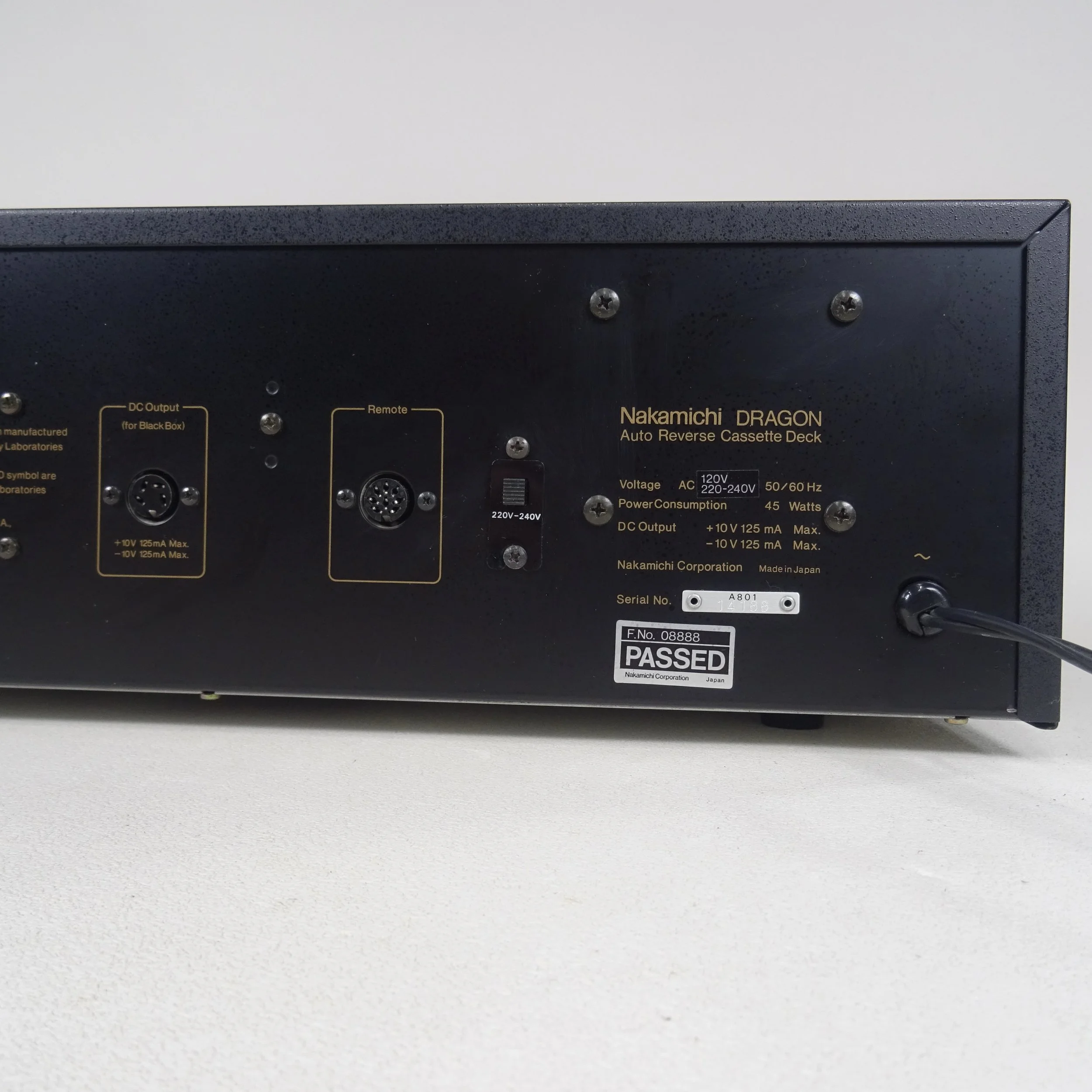

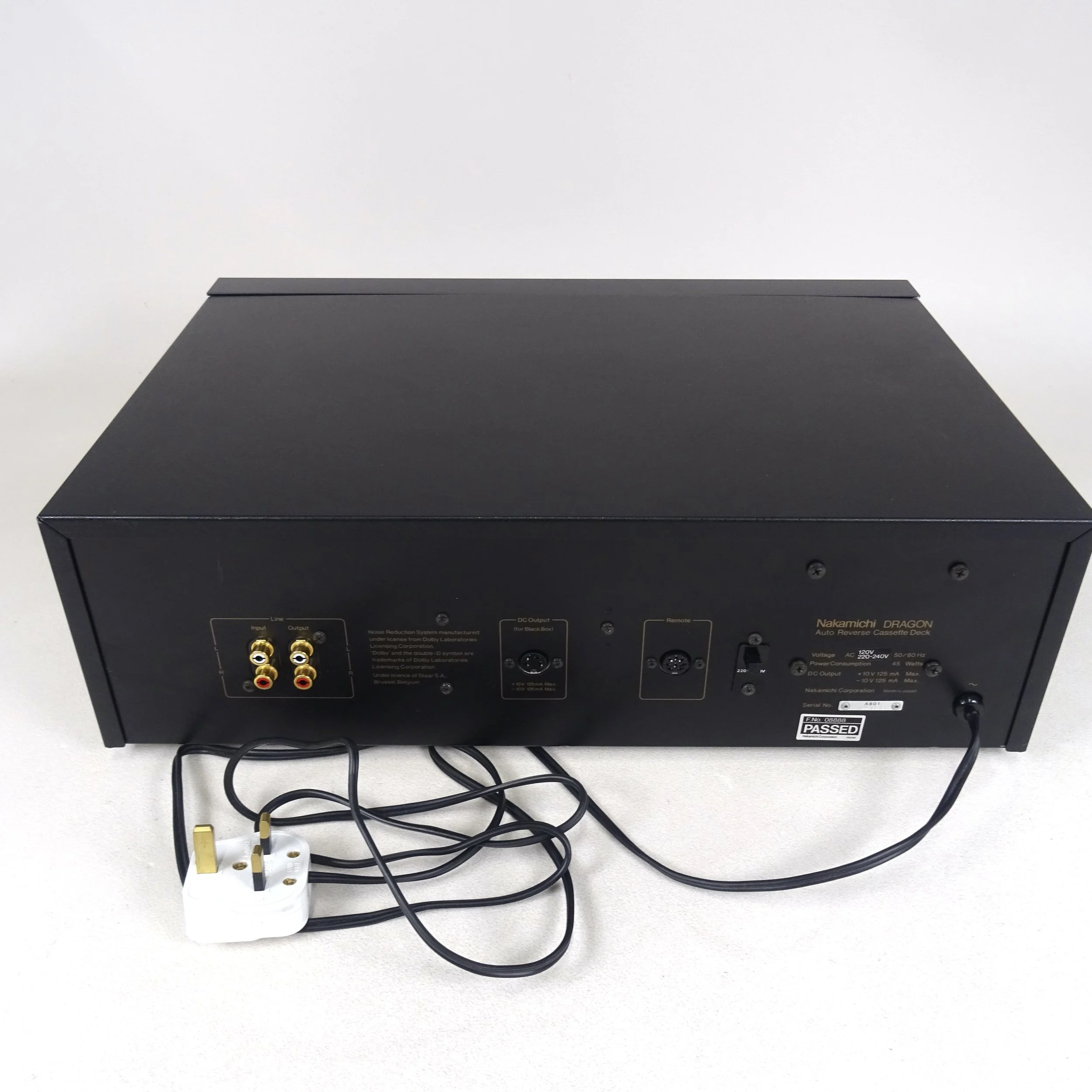

A voltage selector is fitted to the rear panel, allowing the unit to be configured for 120V or 220–240V operation. This provides considerable flexibility for international use and avoids the limitations associated with fixed-voltage examples.
Nakamichi Dragon
The Dragon represented the pinnacle of Nakamichi's cassette technology and incorporates the company's sophisticated NAAC (Nakamichi Auto Azimuth Correction) system, which automatically adjusts playback-head azimuth to compensate for variations in cassette recordings.

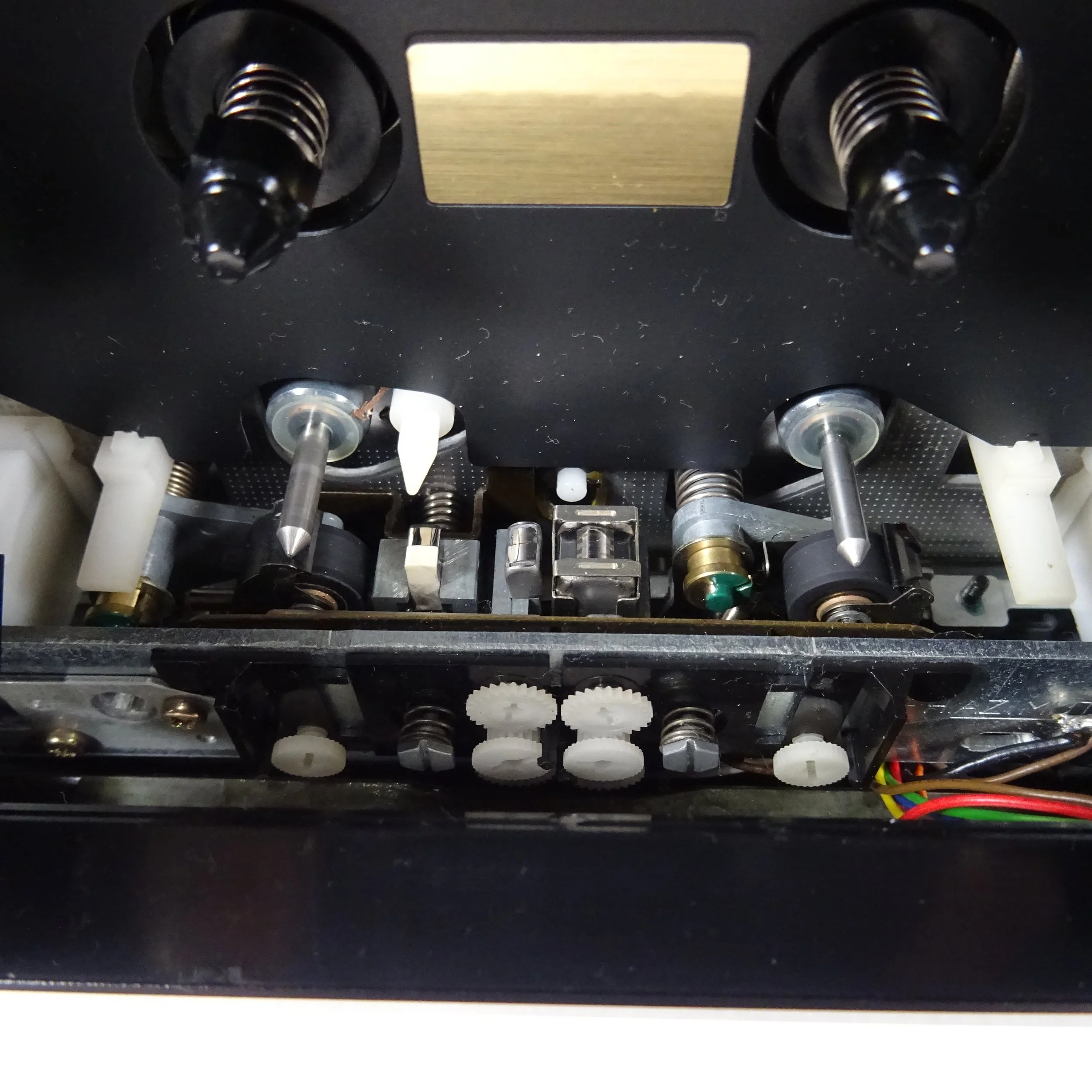

Its three-head configuration, dual direct-drive capstan transport and comprehensive recording and playback facilities make it an exceptionally sophisticated cassette deck.
Key Features
Nakamichi Dragon three-head cassette deck
NAAC – Nakamichi Auto Azimuth Correction
Dual direct-drive capstan transport
Quartz PLL-controlled transport
Auto-reverse playback
Dolby B and Dolby C noise reduction
Three-head configuration for separate record/playback operation
Manual bias and recording-level calibration
Type I, Type II and Metal tape compatibility
Full-logic transport controls
Digital tape counter
Adjustable output level
Headphone output
Rear-panel selectable 120V / 220–240V operation
Technical Specifications
Type: 3-head, 4-track, 2-channel stereo cassette deck
Tape speed: 4.8 cm/sec (1⅞ ips)
Wow & flutter: Less than 0.019% WTD RMS
Frequency response: Up to 20Hz–22kHz ±3dB with Metal tape
Signal-to-noise ratio: Up to 72dB with Dolby C
Total harmonic distortion: Less than 0.8%
Channel separation: Better than 37dB
Bias frequency: 105kHz
Line input: 50mV / 50kΩ
Line output: 1V / 2.2kΩ
Headphone output: 45mW / 8Ω
Power consumption: 45W maximum
Dimensions: 450 × 135 × 300mm (W × H × D)
Weight: Approx. 9.5kg
Condition
Excellent overall preowned condition, with minor blemishes consistent with age and use, as shown in the photographs.
The cassette deck has been tested and is fully operational.

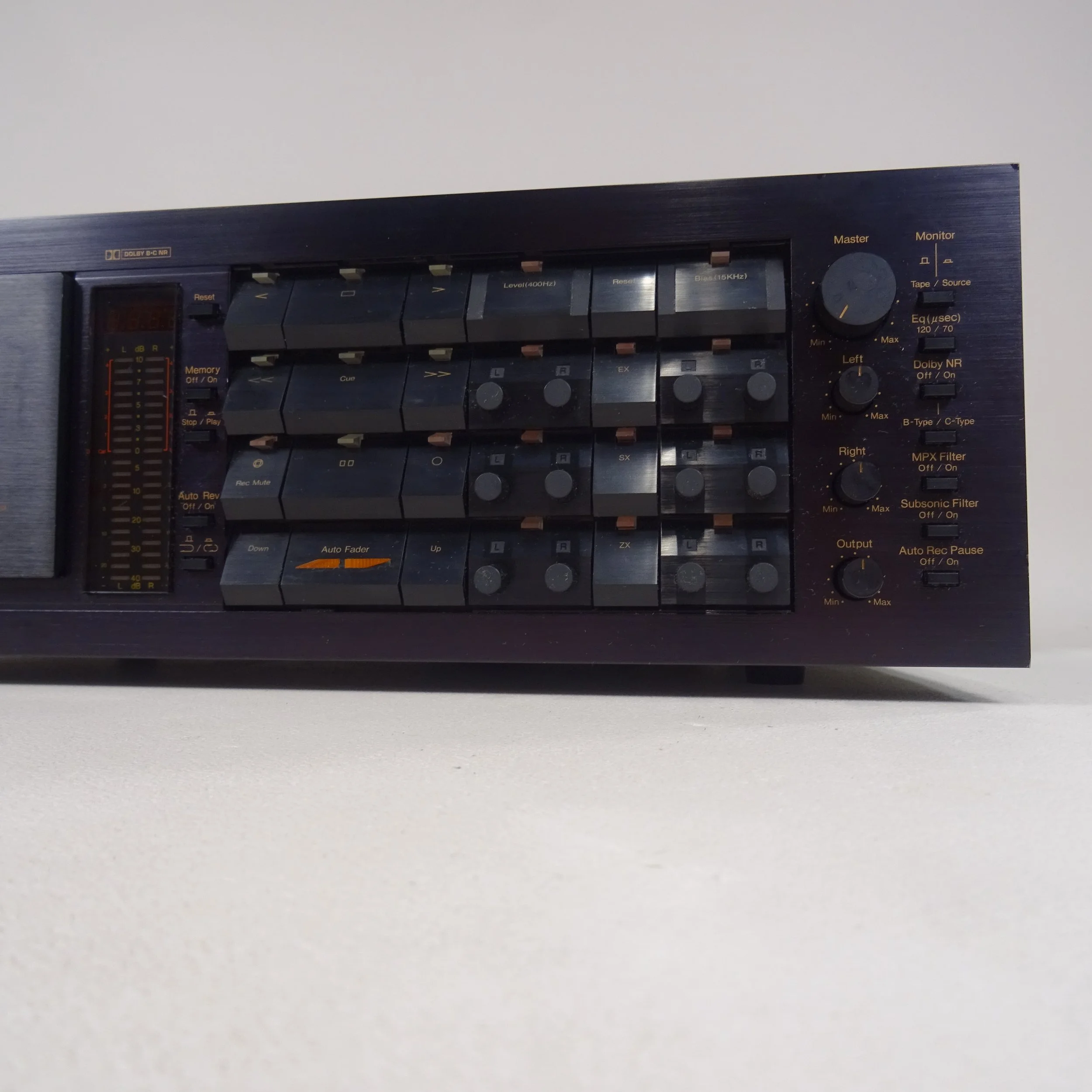

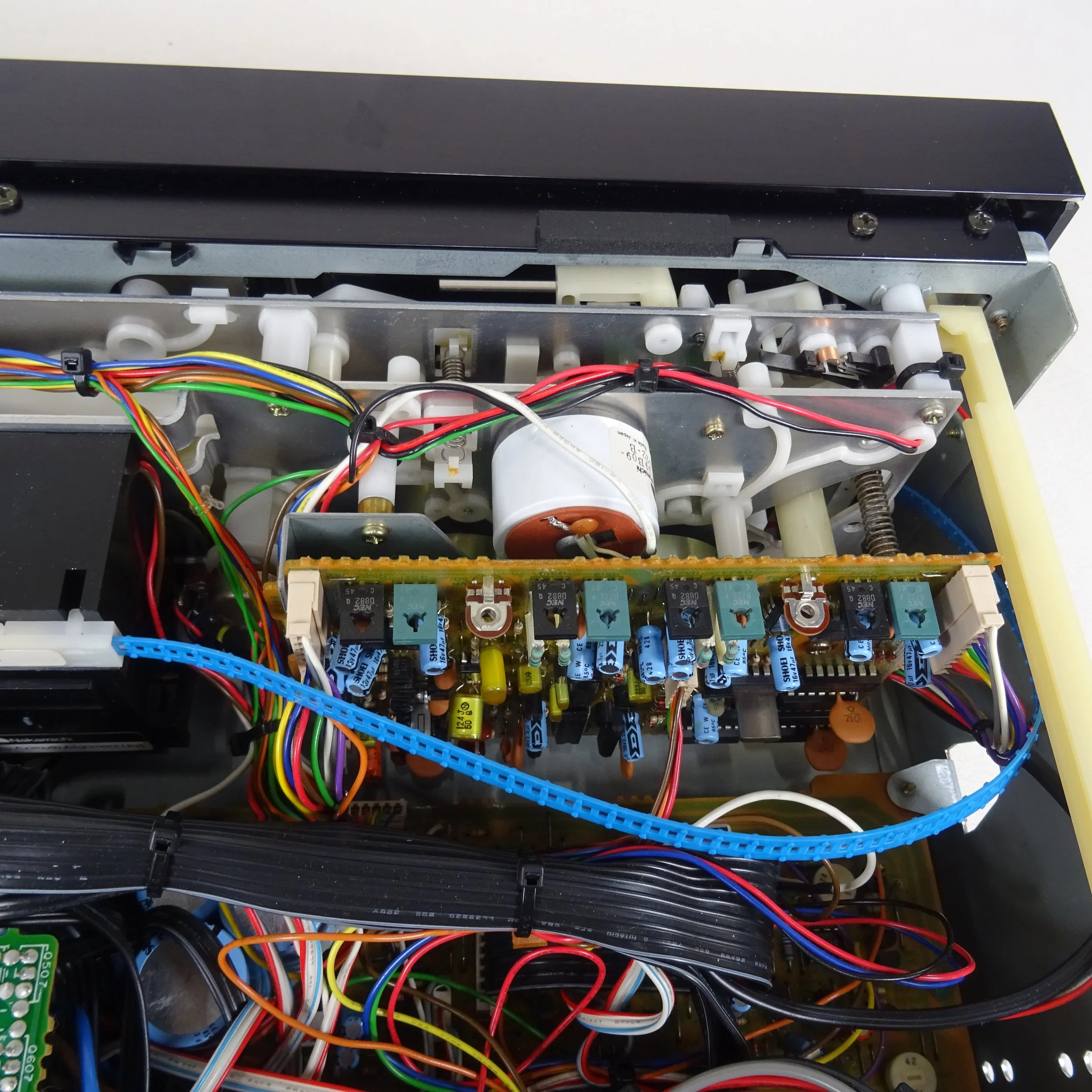

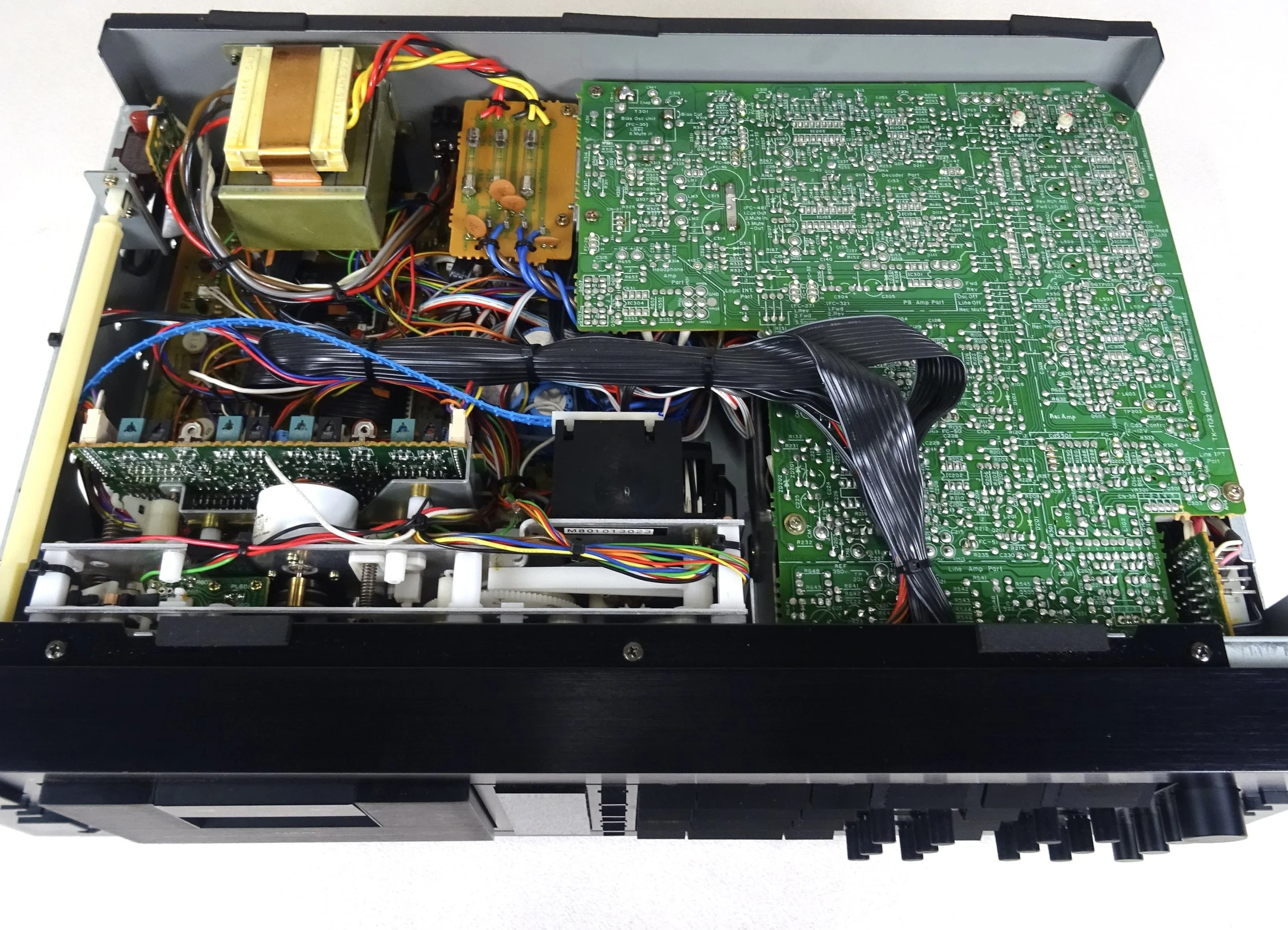

Customers are encouraged to study all photographs carefully, as they show the exact example offered and form part of the description.
Ideal Audio
A rare opportunity to acquire one of Nakamichi's most celebrated cassette decks, in a particularly useful international voltage-selectable configuration.
