Sale Price:
£2,150.00
Original Price:
£2,250.00

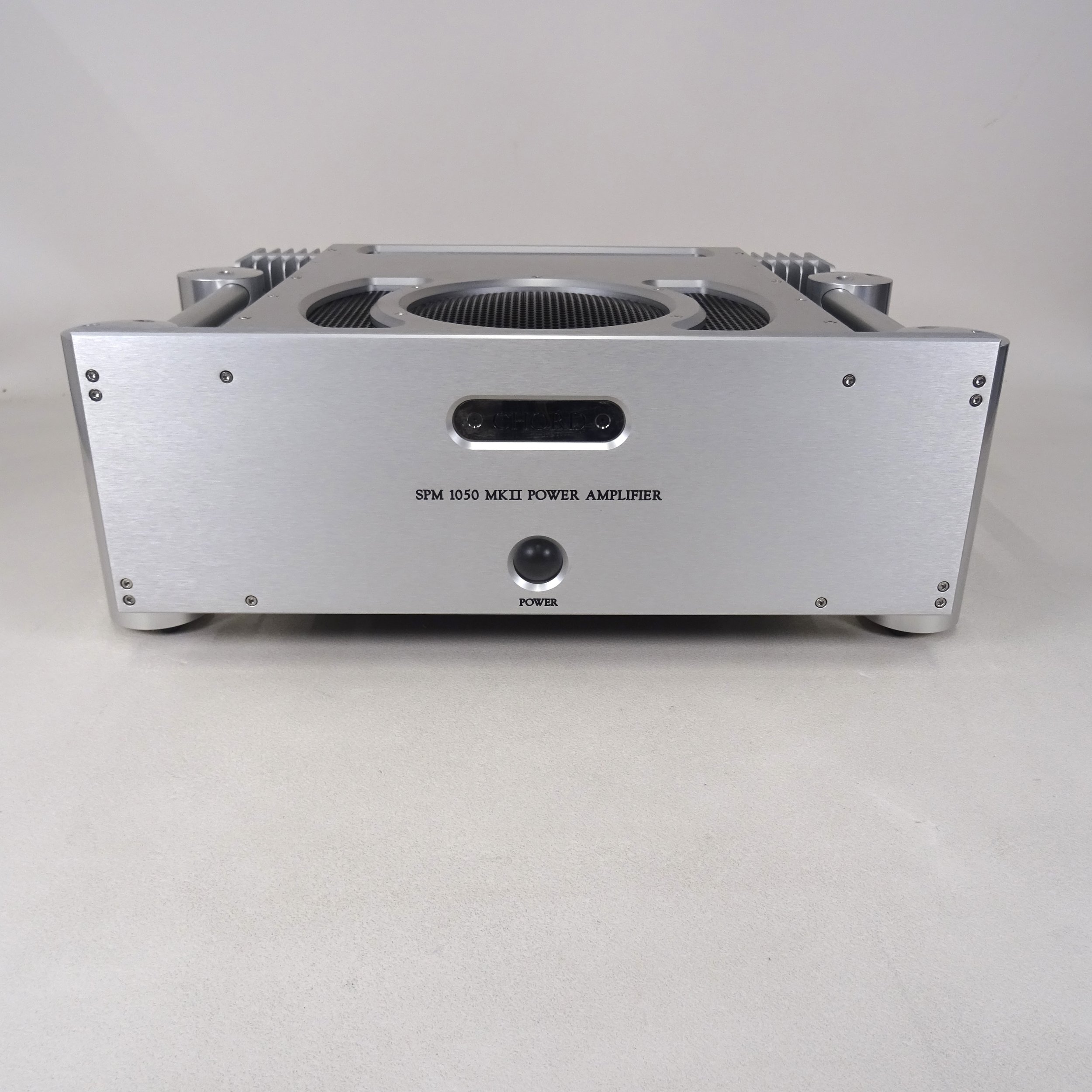

Chord SPM 1050 MkII Stereo Power Amplifier – Silver
Excellent Preowned Condition | Boxed | User Manual & Power Cable
The Chord SPM 1050 MkII is a substantial stereo power amplifier from Chord Electronics, combining high power output with the speed, transparency and precision for which Chord’s power amplifiers are renowned.
Designed and manufactured in the UK, the SPM 1050 MkII employs a sophisticated Class AB sliding-bias output stage, with Class A drive circuitry. This design allows the amplifier to deliver excellent low-level linearity while providing considerable power when required.
Rated at 200W per channel into 8 ohms, rising to 300W per channel into 4 ohms, the SPM 1050 MkII is capable of driving a wide range of demanding loudspeakers. Its high-current output stage, substantial power supply and low output impedance provide excellent control and stability.
The MkII features Chord’s proprietary high-frequency switch-mode power supply and fully balanced amplifier circuitry, together with both balanced XLR and unbalanced RCA inputs.

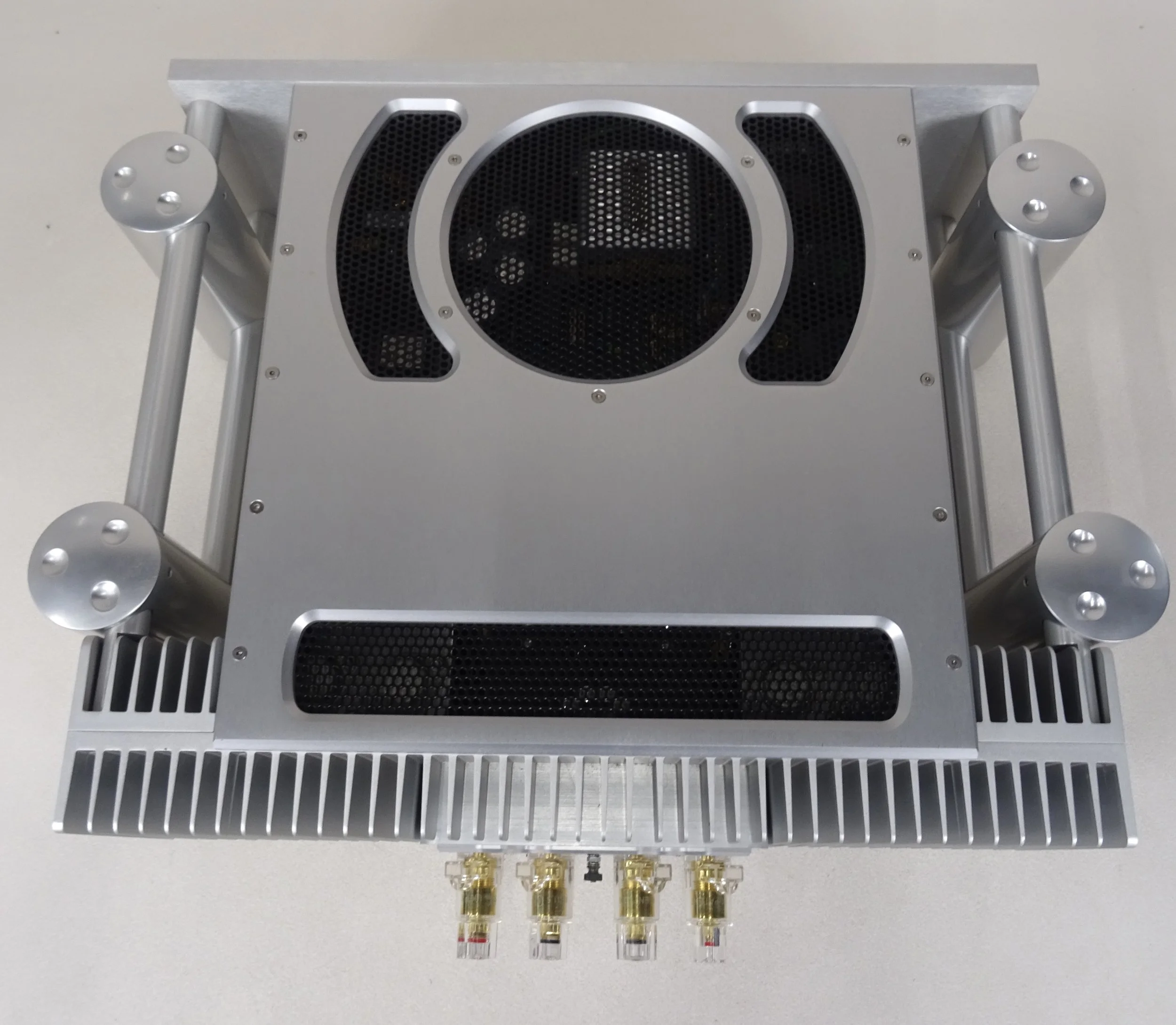

The amplifier is housed in Chord’s distinctive solid-machined aluminium chassis and presented here in Silver, making it both a serious high-performance power amplifier and an attractive addition to a high-end system.
Key Features
Chord SPM 1050 MkII stereo power amplifier
Silver finish
Class AB sliding-bias output stage
Class A drive circuitry
200W per channel into 8 ohms
300W per channel into 4 ohms
Fully balanced amplifier circuitry
Proprietary high-frequency switch-mode power supply
Balanced XLR and unbalanced RCA inputs
High-current speaker terminals
12V trigger input
Convection cooled
Solid aluminium chassis
Designed and manufactured in England

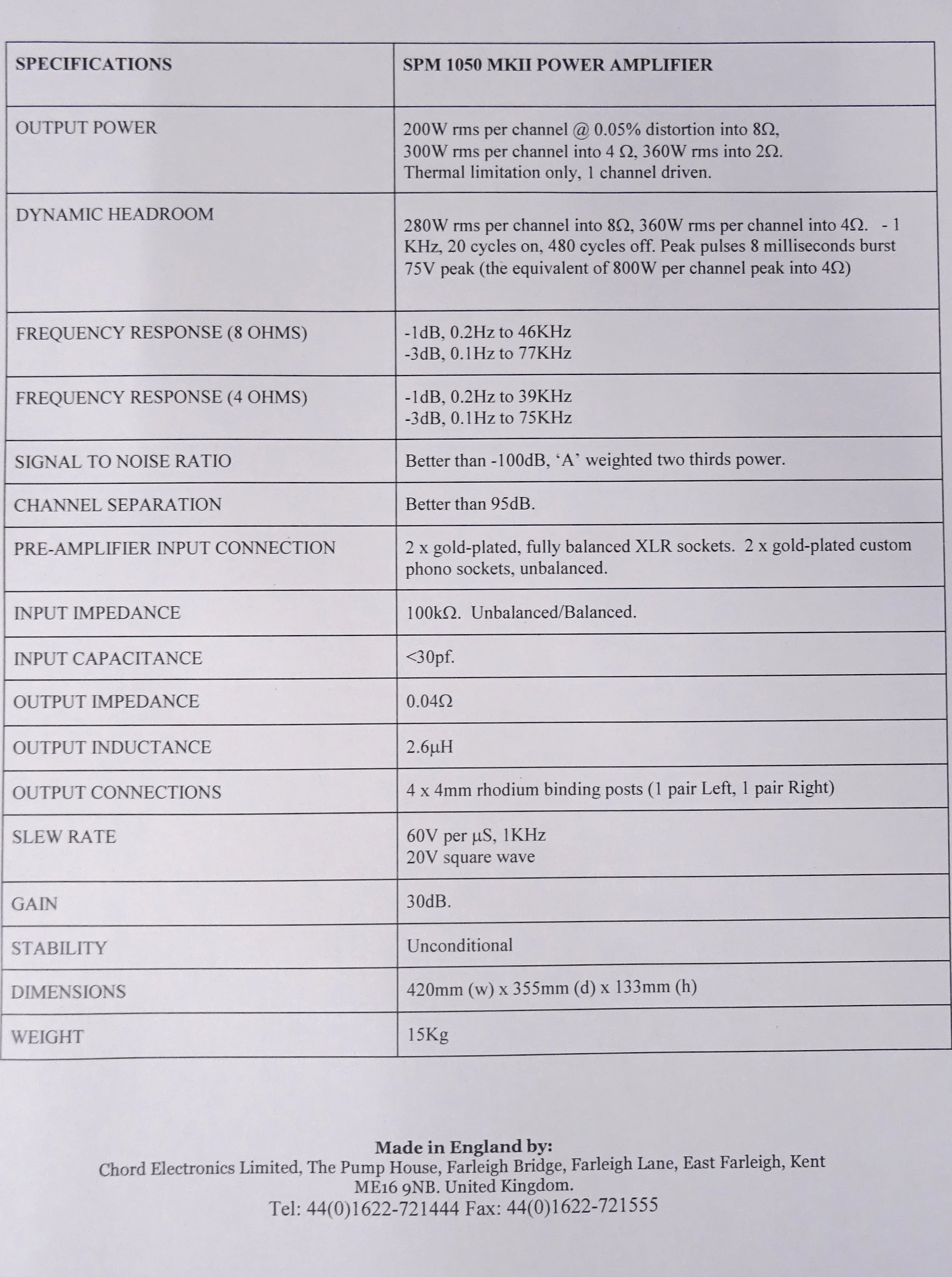

Technical Specifications
Output Power: 200W RMS per channel into 8Ω
Output Power: 300W RMS per channel into 4Ω
Dynamic Headroom: 280W RMS per channel into 8Ω; 360W into 4Ω
Frequency Response: 0.2Hz – 46kHz (-1dB, 8Ω)
Frequency Response: 0.1Hz – 77kHz (-3dB, 8Ω)
Signal-to-Noise Ratio: Better than -82dB
Channel Separation: Better than 95dB
Input Impedance: 100kΩ
Output Impedance: 0.04Ω
Slew Rate: 70V/µs
Gain: 30dB

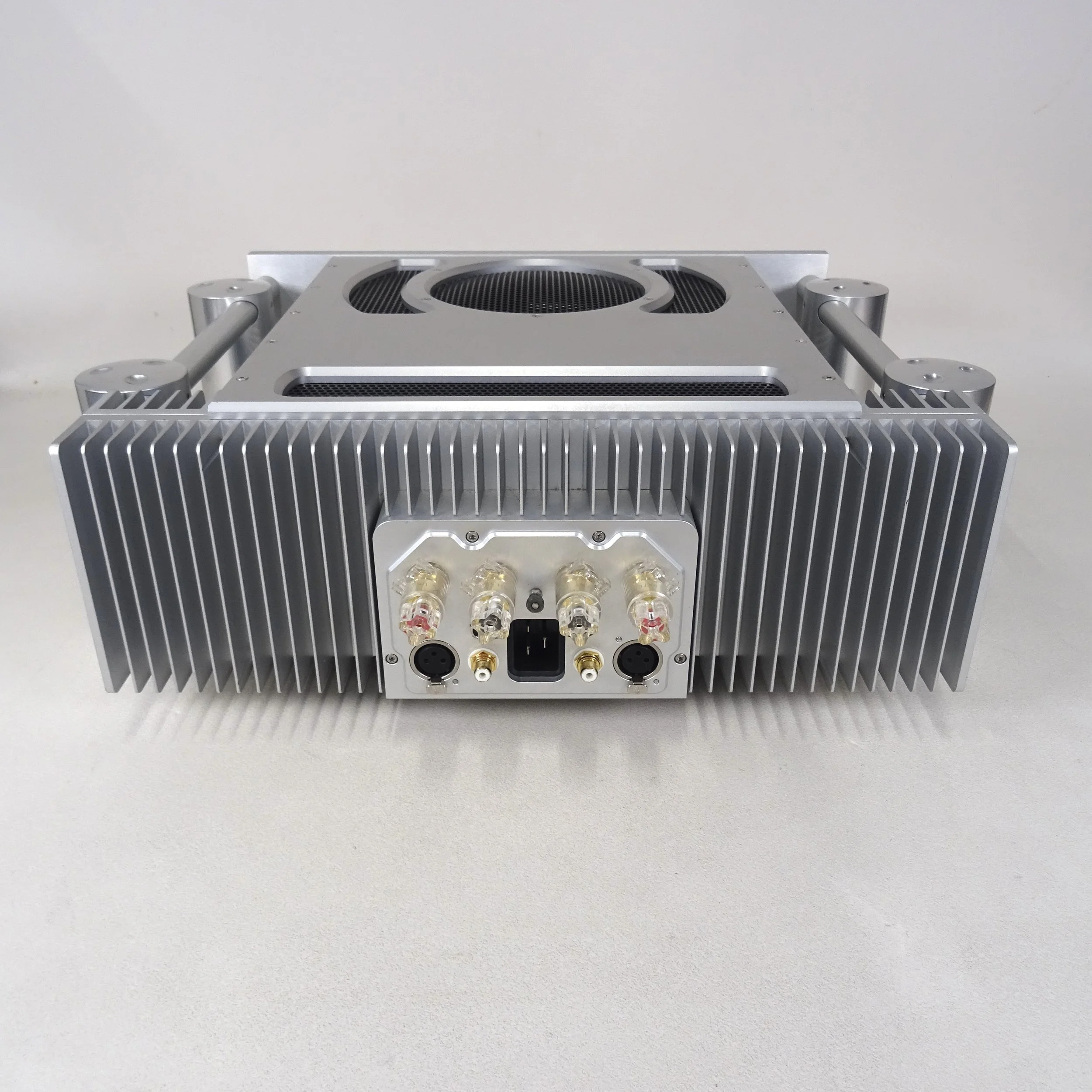

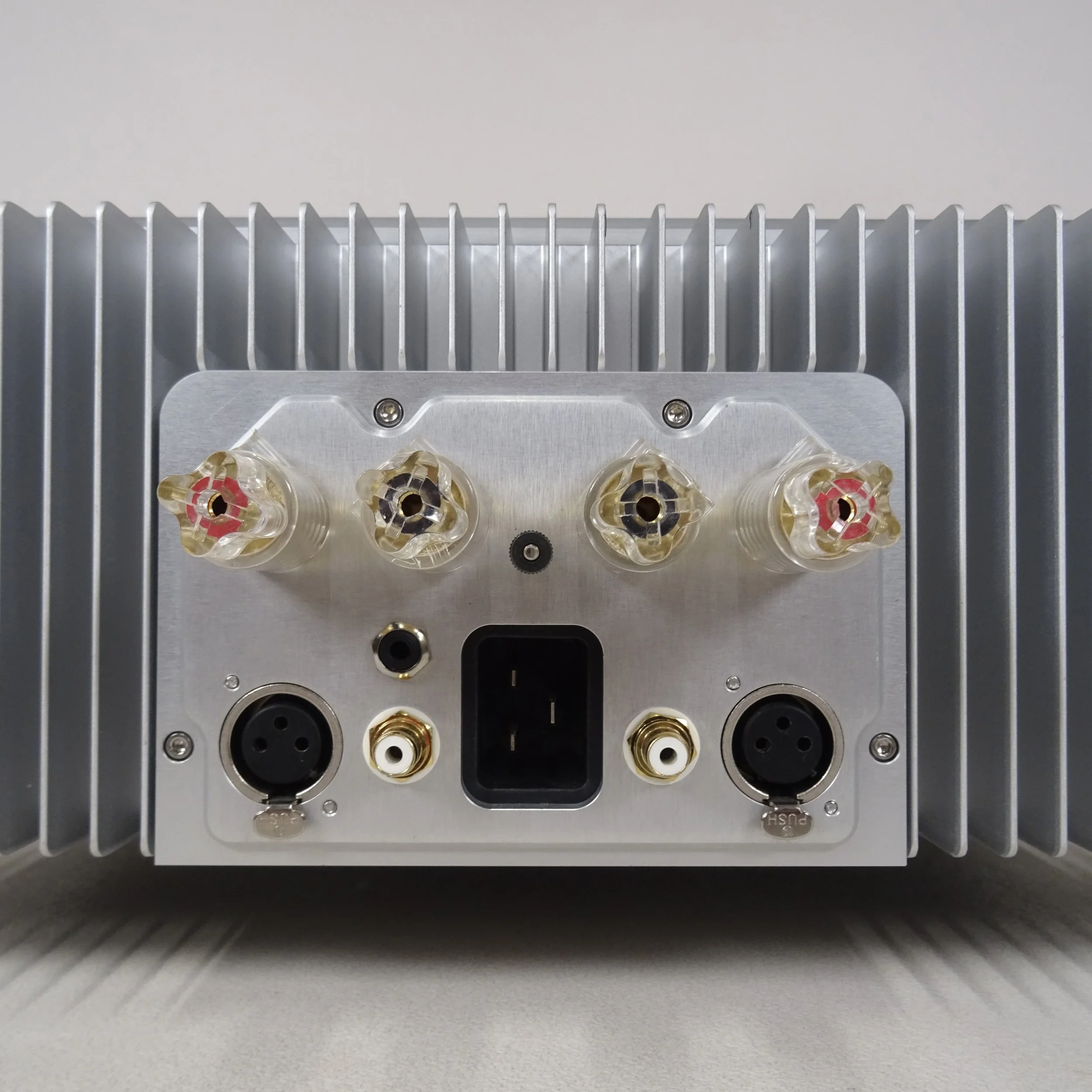

Inputs: Balanced XLR and unbalanced RCA

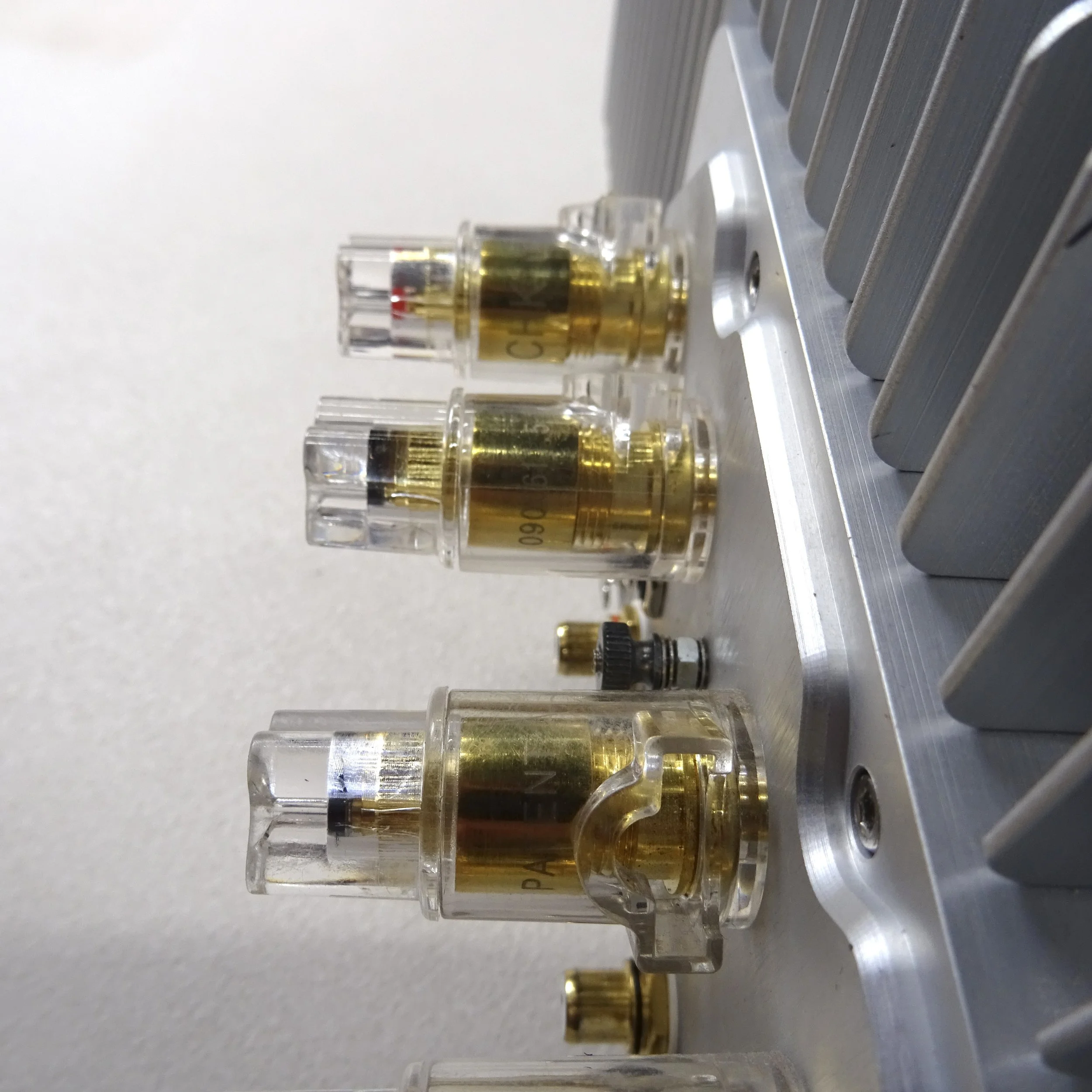

Speaker Outputs: High-current gold-plated terminals
Cooling: Convection cooled
Dimensions: 420 × 355 × 133mm (W × D × H)
Weight: Approximately 17kg
Condition & Testing
Excellent preowned condition, with only minor cosmetic signs of previous use.
The amplifier has been professionally tested and is fully operational, with both channels checked and confirmed to be functioning correctly.

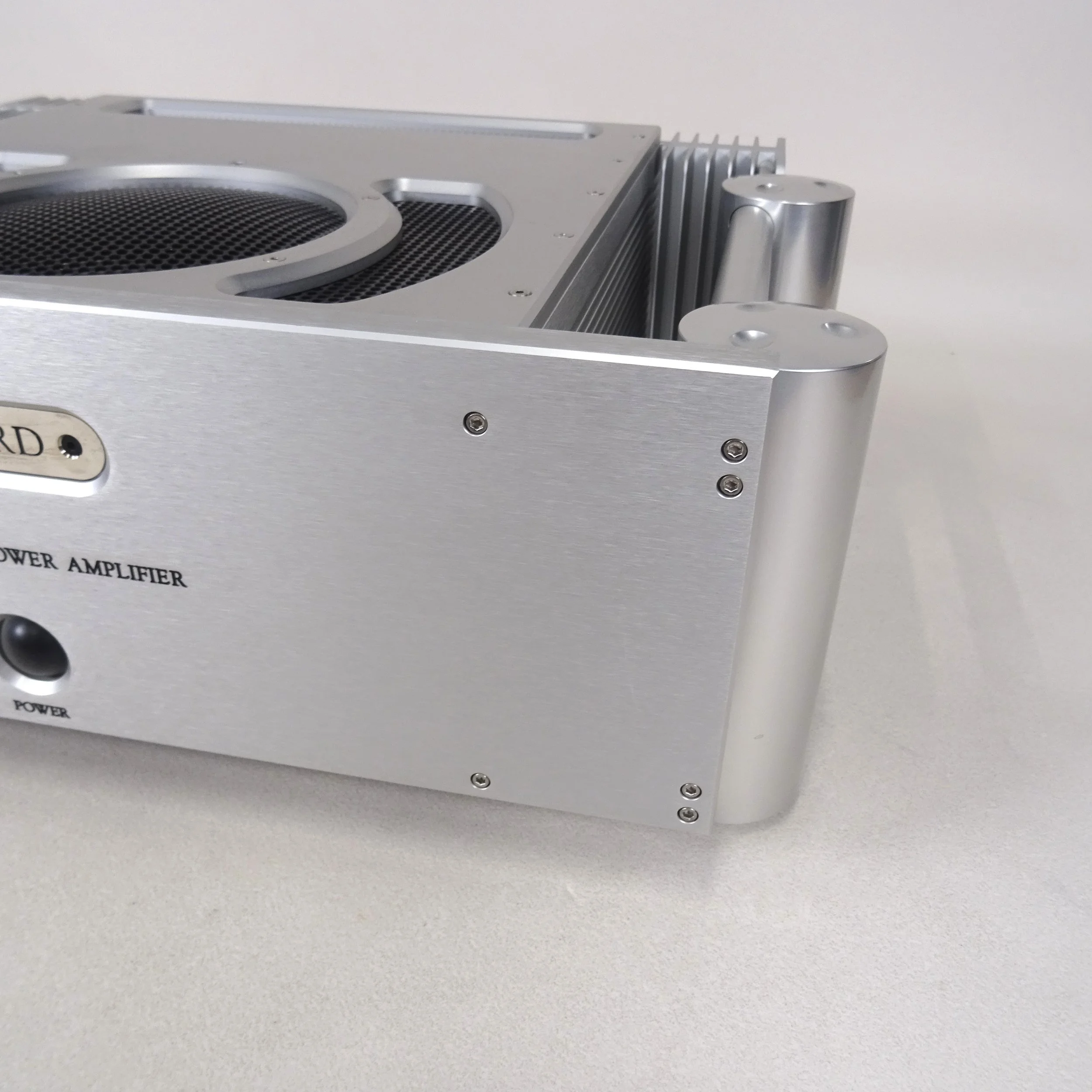

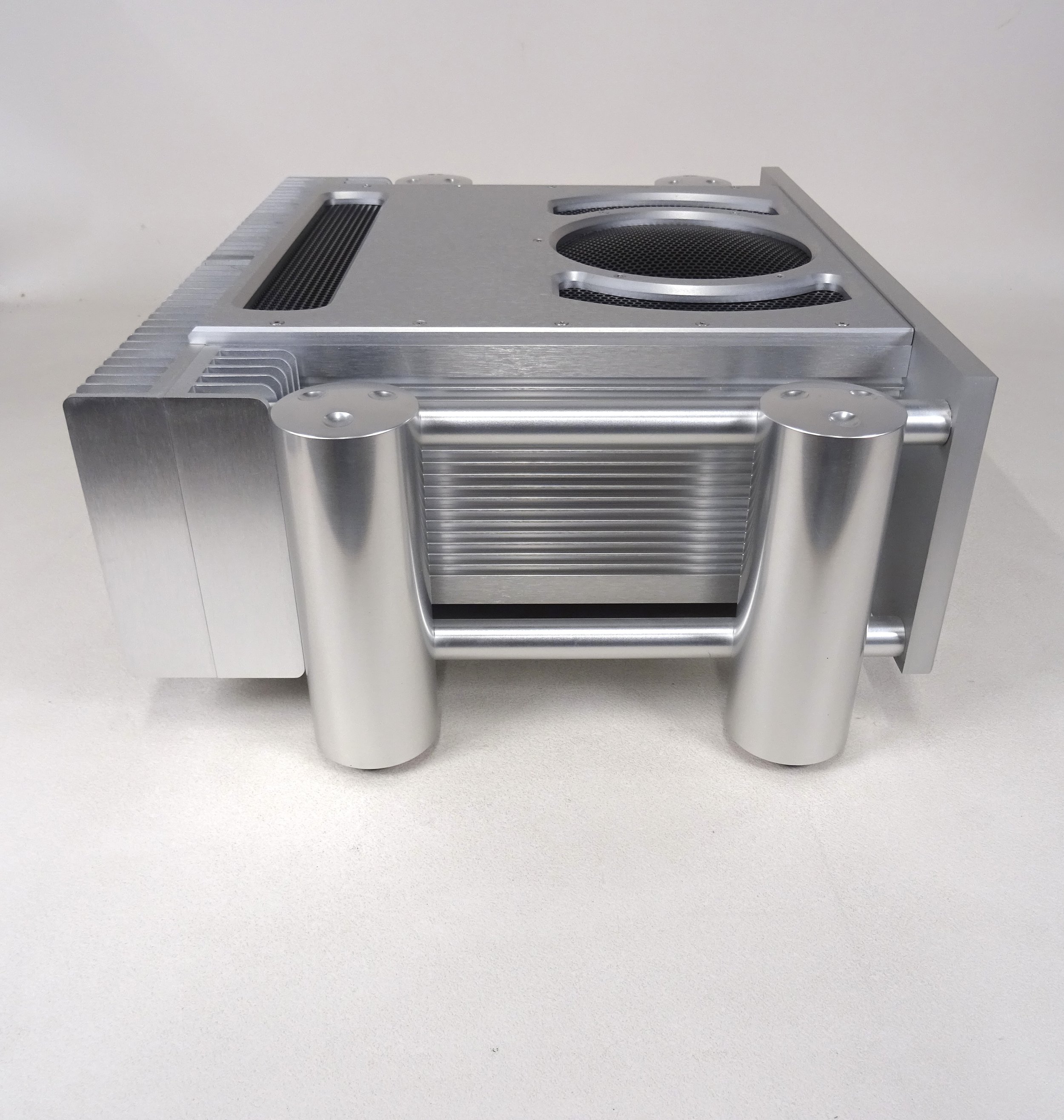

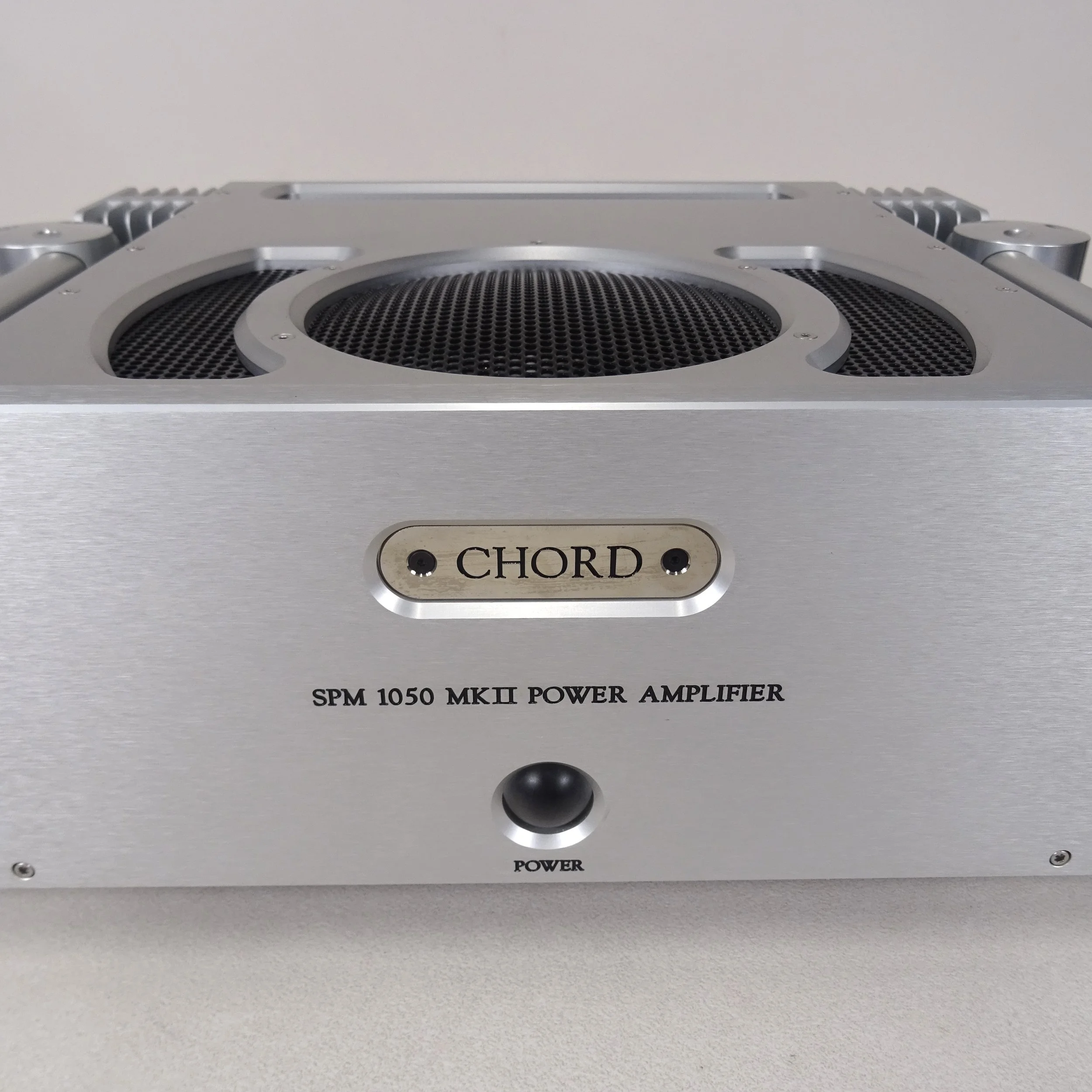

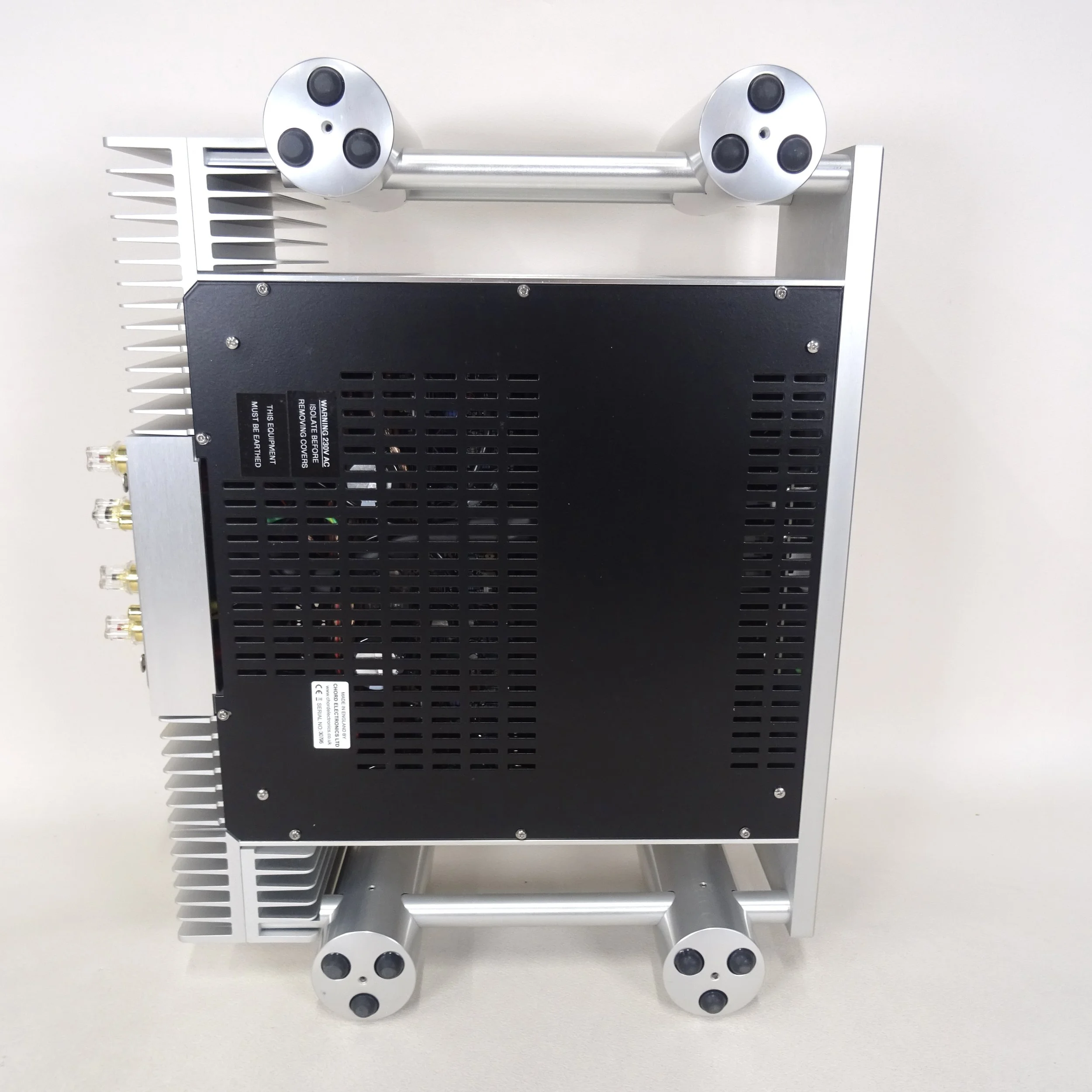

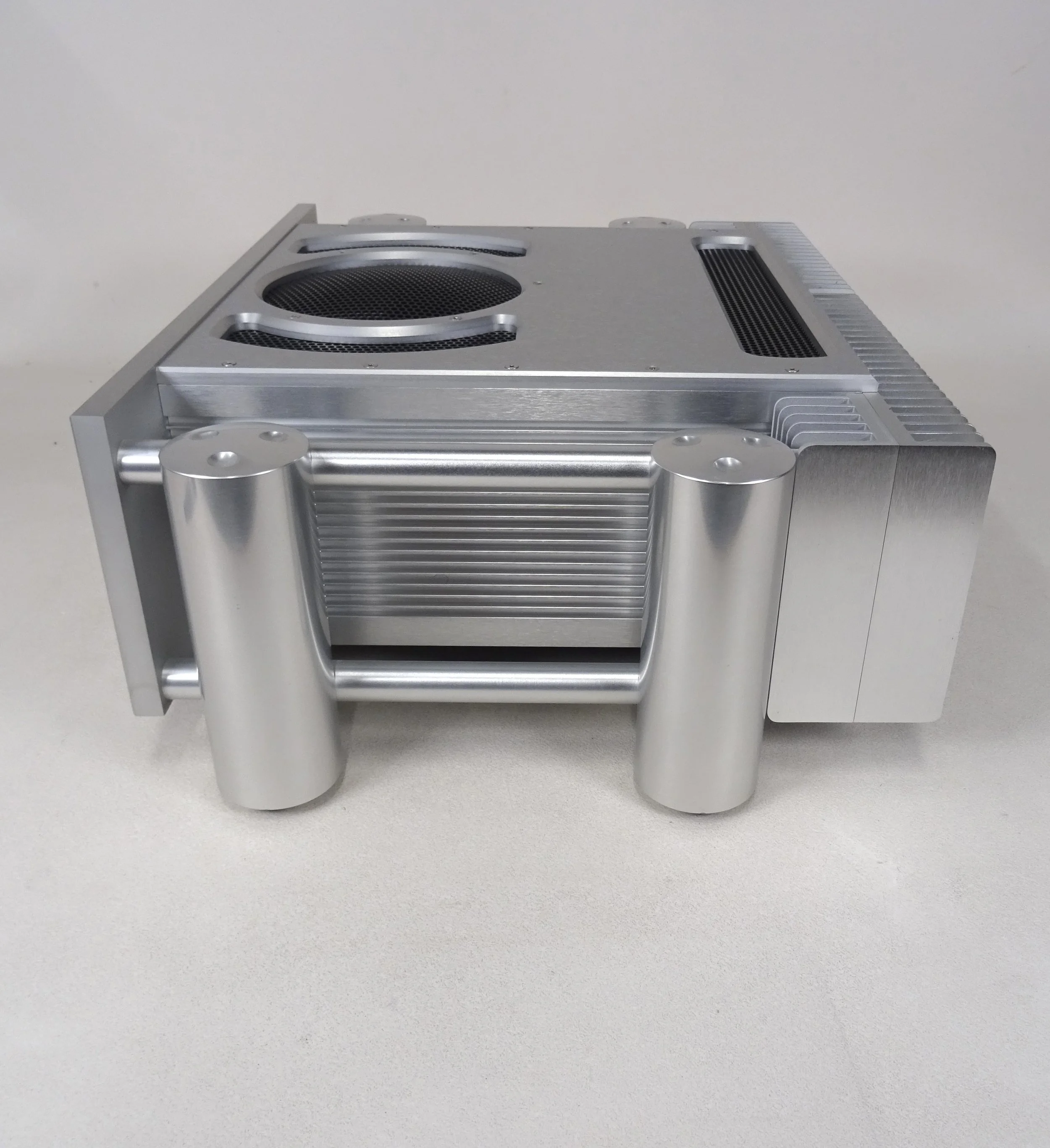

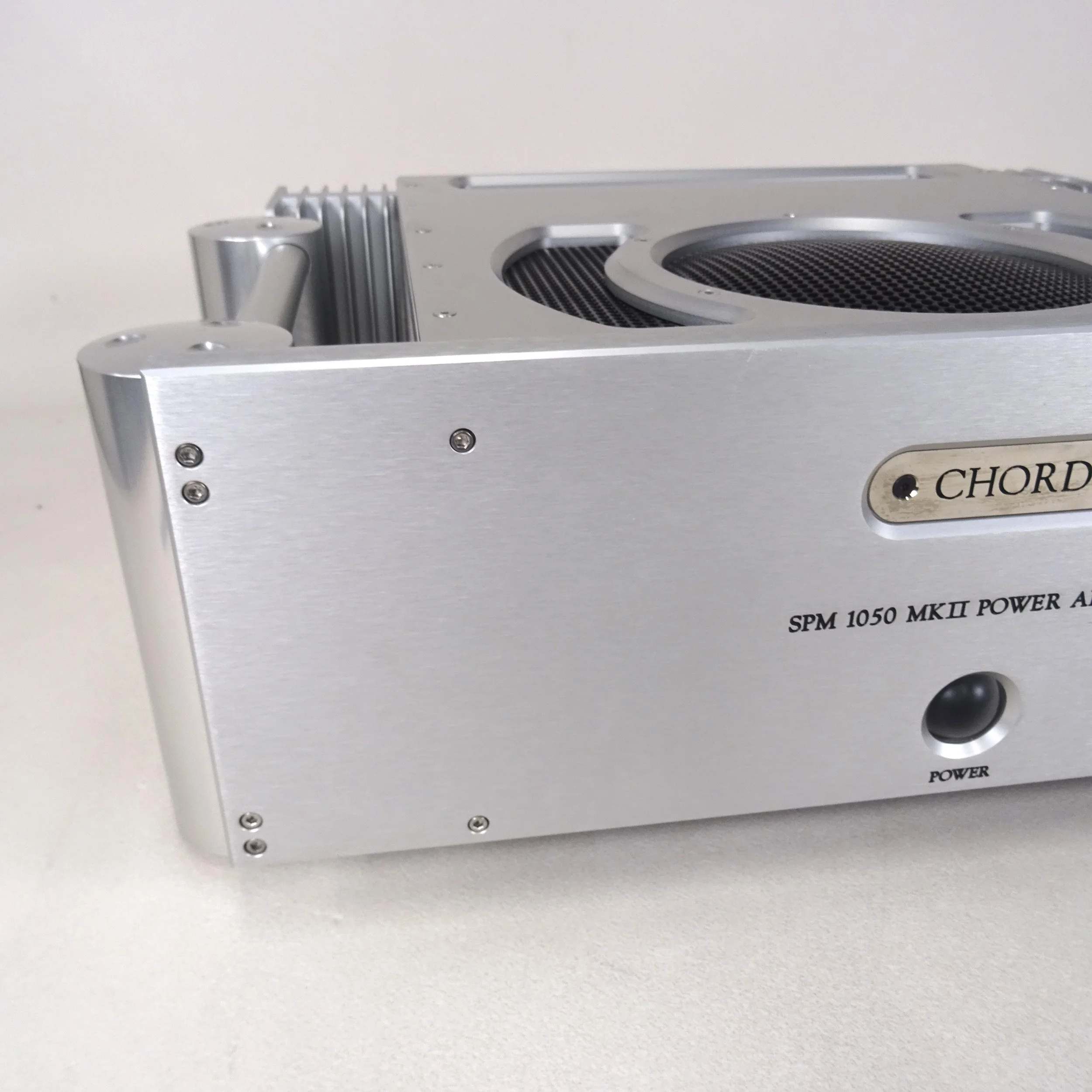

Please study the photographs carefully, as they show the actual amplifier offered and form part of the description.
Included
Supplied by Ideal Audio UK.
